Basic Info.
Model NO.
MZ-350BS
Bag Length
Minimum 65mm,Maximum Unlimited.
Bag Width
50-160mm
Product Height
Max.75mm
Max Width of Roll Film
Max.320mm
Packing Speed
40-230bag/Min
Voltage
220V,50/60Hz
Machine Size(L*W*H)
3700*670*1450mm
Machine Weight
550kgs
Packing Sample
Biscuits
Servo Motor
3 Servo
Power
2.4kw
Packing Film
OPP,Aluminized
Origine
Shanghai
Spart Partss
Brusher
Transport Package
Exported Wooden Case Plywood
Specification
MZ-350XS
Trademark
MOTECH
Origin
Shanghai
HS Code
8422303090
Production Capacity
800 Pieces/Month
Packaging & Delivery
Package Size
370.00cm * 67.00cm * 145.00cm
Package Gross Weight
550.000kg
Product Description
3 Servo Motor Drive Horizontal Packing Machine
1. Machine Picture
2.USES
Food: bakery bread,biscuits,cookies,candy,chocolate bar,cake,popsicle,ice cream bar,meat,muffin,sausage,noodles,beef jerky,egg roll,etc.
Vegetables and Fruits: apples,bananas,lettuce,potatoes,tomatoes,peppers,cucumbers,etc.
Hardwares: hinge,stainless steel pipe,bearings,screw,nuts and washer,etc
Hotel Supplies: soap,disposable comb,razor,toothpaste and toothbrush in one set.
Stationary: pencil,eraser,notebook,paper card,adhensive tape,etc.
Electric Products: battery,usb cable,earphone,user manual and accessories in one set.
Medical: face mask,glove,gauze,pill capsule table,disposable syringe,bandage,etc.
Daily use: disposable tableware,knife,spoon,fork,plate,sponge,scourer,wipes,several drinking straws in a bag,plastic cups,bottles,wood charcoal briquette,napkin,baby diaper,etc.
3. Sample
4. Performance Characteristics
Servo 3 motors, Panasonic PLC controller,flexible bag length setting and cutting,saving time and film.
human-machine interface, convenient and quick parameter settings, when the product is sensed by the sensor, then it will be packing automatically, otherwise, it will be stopped.
Self diagnosis failure function, failure displayed clearly.
High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
Separated PID control system for temperature, suitable for various packing materials.
Stopping the machine in selected position, no sticking on the knife and no waste of the film.
Simple driving system, reliable working, convenient maintenance.
All controlled by program, convenient for function adjusting and upgrading.
Automatic sensing material length, there are automatic packaging of products, no product shutdown waiting, no adjustment.
5. Main Technical Parameter
Optional Accessories:
Function: It can print Manufacture date,Expiration date and Batch number on the bag
6. Main Electrical Brand
7. Machine Details:
8.Packing Materials:
Heat-sealable laminated film: such as OPP,Aluminized,POPP& other special sealable packing film
9.Spart PartsS
1. Three pushers
2. A Mid-seal belt
3. A solid-state relay
4. Two heating tubes
5. One set tools
6. User manuels
7.Four foot cups
8.One set power cable.
10. Bag Type
11. Packing Method
12.Our Client :
Our Certification:
SME is a leading manufacturer in the field of front-of-line packaging devices since 2008. In the past 14 years, MOTECH has targeted on the technology development, precise manufacturing, professional marketing, satisfied technical support and OEM solutions. We offer Flow Packing Machine;Vertical Packing Machine;Metal Detector;Weight Checker and Weighter to fit the needs of different industries.
Due to continuous efforts in the field of end-of-line packaging devices, MOTECH Machinery was honored to obtain CE certificate and ISO 9001 certificate showed our emphasis on safety ,quality and has a successful sale in Asia, American, Africa and so on. MOTECH looks forward to establishing a long-term and mutual beneficial partnership with more agents or distributors all over the world. Moreover, We provide the OEM solution based on strict quality control for famous companies in Japan, USA etc.
In the future, MOTECH Machinery will keep to provide customers:
-Quality machines
-Competitive price
-Satisfied service
Our Team:
https://smegroup.en.made-in-china.com/contact-info.html
1. Machine Picture
2.USES
Horizontal Automatic Flow Pack Packing Machine is suitable for packaging various kinds of large size regular objects into pillow bag or gusseted bag, like Food, Vegetables and Fruits, Hardwares, Hotel Supplies, Stationary, Electric Products, Medical, Daily use and etc
Food: bakery bread,biscuits,cookies,candy,chocolate bar,cake,popsicle,ice cream bar,meat,muffin,sausage,noodles,beef jerky,egg roll,etc.
Vegetables and Fruits: apples,bananas,lettuce,potatoes,tomatoes,peppers,cucumbers,etc.
Hardwares: hinge,stainless steel pipe,bearings,screw,nuts and washer,etc
Hotel Supplies: soap,disposable comb,razor,toothpaste and toothbrush in one set.
Stationary: pencil,eraser,notebook,paper card,adhensive tape,etc.
Electric Products: battery,usb cable,earphone,user manual and accessories in one set.
Medical: face mask,glove,gauze,pill capsule table,disposable syringe,bandage,etc.
Daily use: disposable tableware,knife,spoon,fork,plate,sponge,scourer,wipes,several drinking straws in a bag,plastic cups,bottles,wood charcoal briquette,napkin,baby diaper,etc.
3. Sample
4. Performance Characteristics
Servo 3 motors, Panasonic PLC controller,flexible bag length setting and cutting,saving time and film.
human-machine interface, convenient and quick parameter settings, when the product is sensed by the sensor, then it will be packing automatically, otherwise, it will be stopped.
Self diagnosis failure function, failure displayed clearly.
High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
Separated PID control system for temperature, suitable for various packing materials.
Stopping the machine in selected position, no sticking on the knife and no waste of the film.
Simple driving system, reliable working, convenient maintenance.
All controlled by program, convenient for function adjusting and upgrading.
Automatic sensing material length, there are automatic packaging of products, no product shutdown waiting, no adjustment.
5. Main Technical Parameter
(We have several Models. Don't Worry! We can customize the suitable one for you according to your requirements.
Just Tell us : Weight or Bag Size required.)
Just Tell us : Weight or Bag Size required.)
| Model | MZ-350XS |
| Film width | Max.340mm |
| Film roll diameter | Max. 320mm |
| Bag length | Minimum 65MM,maximum unlimited. |
| Bag width | 50-160mm |
| Product Height | Max. 45mm |
| Weight | about 550kg |
| Packing Speed | 40-230bag/min |
| Power Specification | 220V,50/60HZ 2.4KW |
| Machine size( L*W*H) | 3700*670*1450mm |
Optional Accessories:
- Air Filling Device
- Date Coder
- Angle Folding Device
- Hole Punching Device
- Magazine Filling Machine
- Alcohol Spraying Device
- Deoxidizer Chute Device
- Nitrogen Flushing Device
- Notch and Auto Labeling Machine
- Alternative Sealing Machine
- Cutting Device
Function: It can print Manufacture date,Expiration date and Batch number on the bag

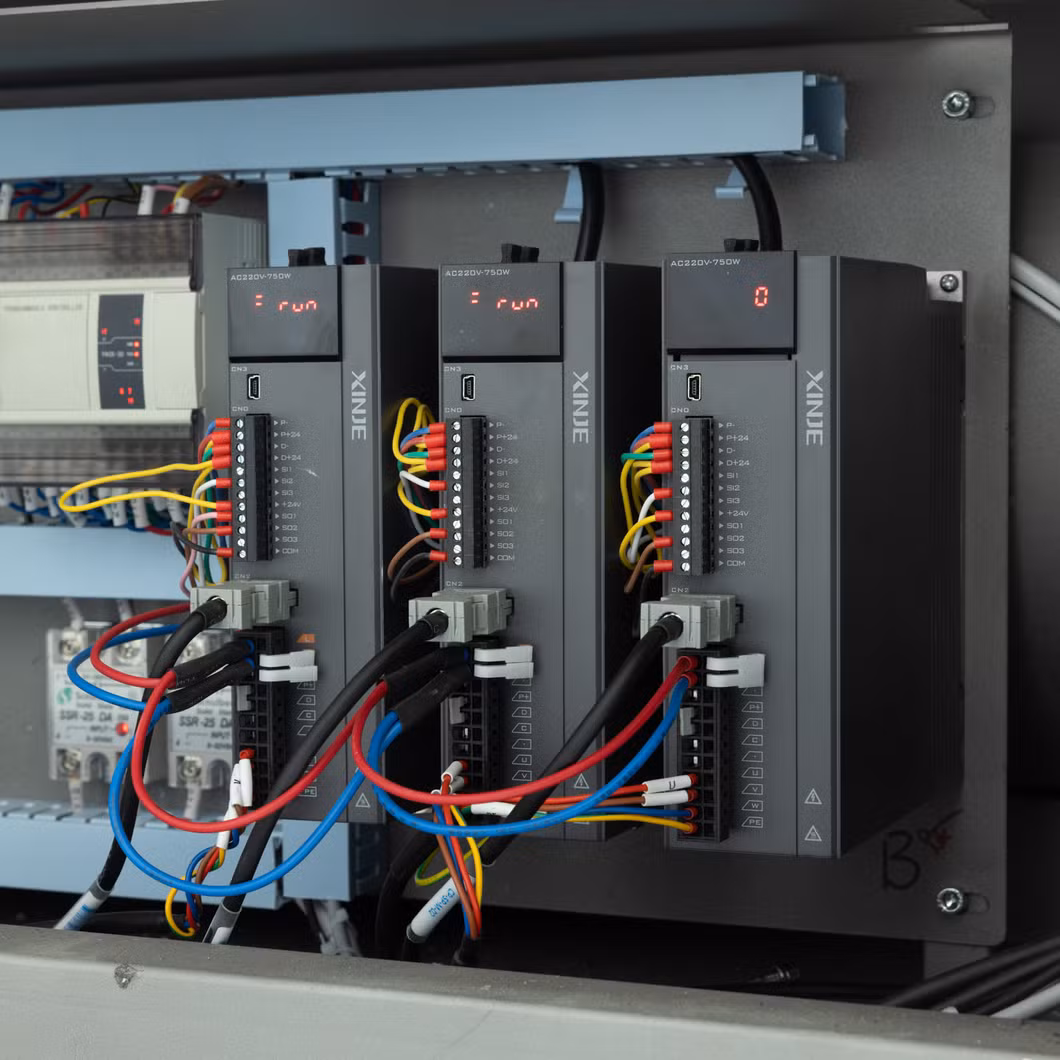

6. Main Electrical Brand
| NO. | Components | Brand |
| 1 | PLC | XINJE from China |
| 2 | Servo motor | XINJE from China |
| 3 | Display Screen | XINJE from China |
| 4 | Temperature Control List | AISET from Shanghai |
| 5 | Photocell | AISET from Shanghai |
| 6 | Date coder | Changchun rongde from China |
| 7 | Two Wire Switch | GLELE |
| 8 | Close to Switch | Omron from Japan |
| 9 | Power | Ming Wei from Taiwan |
| 10 | Solid State Relay | Sch from Germany |
| 11 | Intermediate Relay | Omron from Japan |

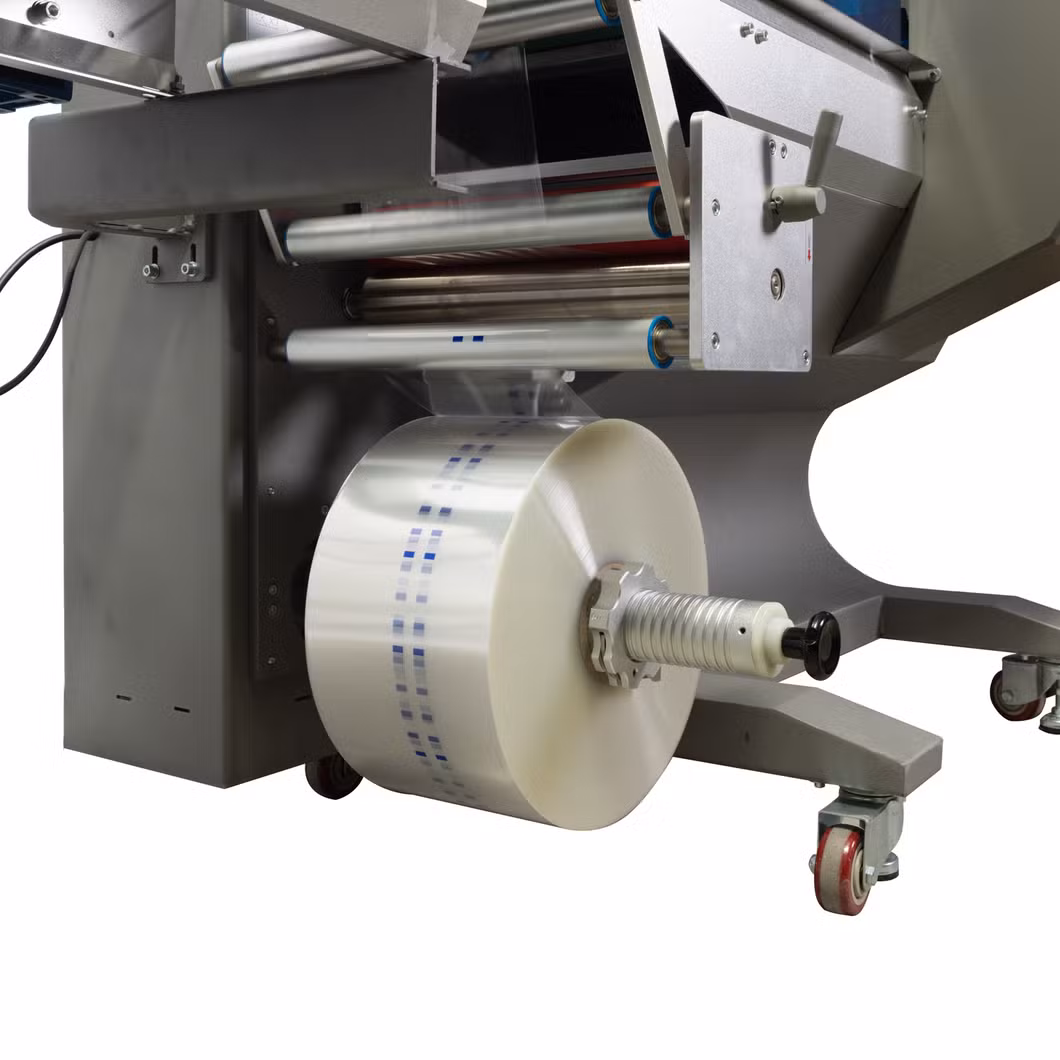

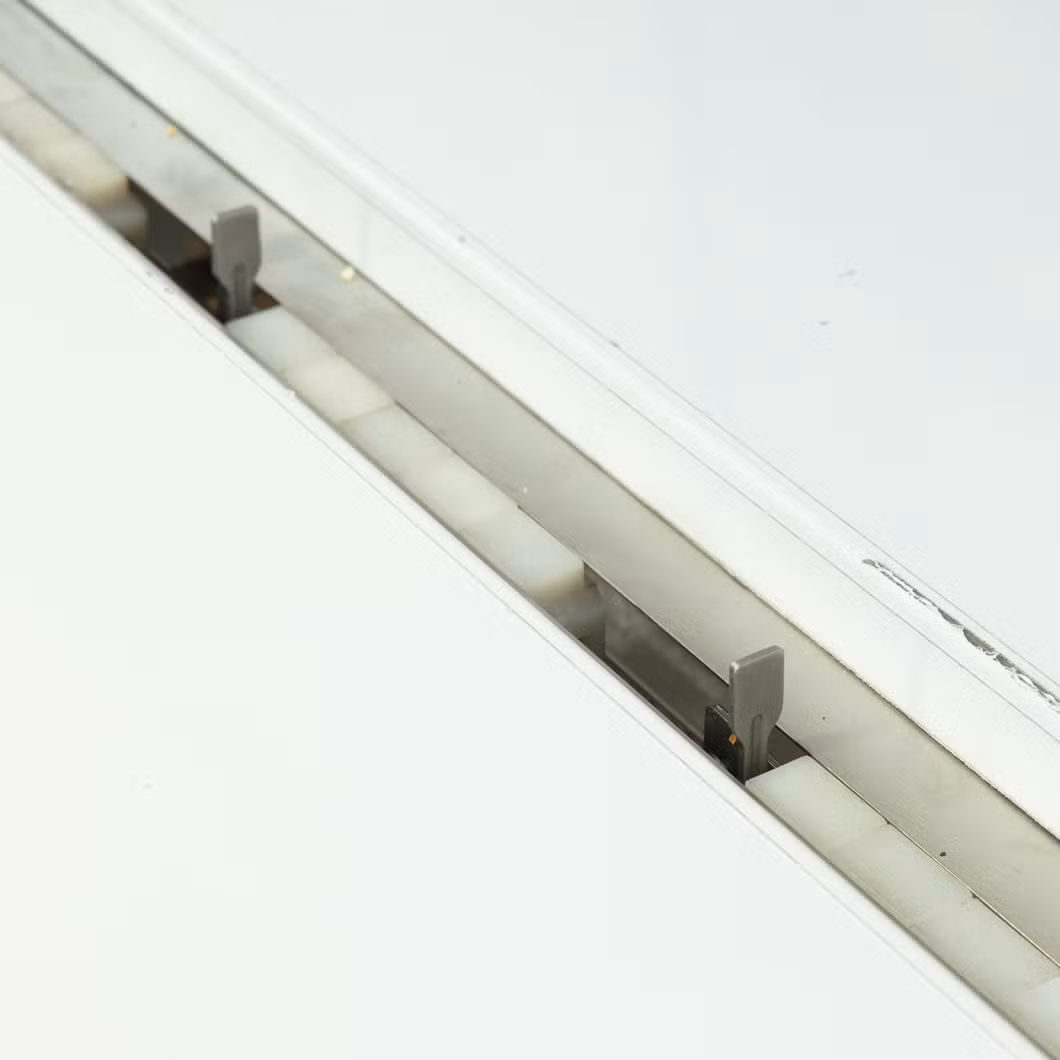

7. Machine Details:
8.Packing Materials:
Heat-sealable laminated film: such as OPP,Aluminized,POPP& other special sealable packing film
9.Spart PartsS
1. Three pushers
2. A Mid-seal belt
3. A solid-state relay
4. Two heating tubes
5. One set tools
6. User manuels
7.Four foot cups
8.One set power cable.
10. Bag Type
11. Packing Method Exporting Wooden Cases: 1 machine with 2 wooden boxes
12.Our Client :
Our Certification:
