Basic Info.
Model NO.
TBC2800
Fuel
Gas
Range of Applications
Industrial
Type
Burner Controller
Name
Burner Controller
Model
Tbc2800
Deliver Time
3~15days
Term of Payment
EXW/Fob
Use
Gas Burner Accessories
Transport Package
Carton
Specification
100(W)*160(H)*100(L)mm
Trademark
JATE
Origin
China
HS Code
8302600000
Production Capacity
100
Product Description
Factory Price JATE Controller TBC2800 Primary Control For Industrial Combustion
OVERVIEW The JATE TBC2800 Relay Module is a microprocessor based flame detector relay that can be fitted with any 7800 SERIES Flame Amplifier to provide relay action from one dpdt relay when flame is or is not present. Product required components:Q7800A,B Universal Wiring Subbases.
| Name | Burner Controller |
| Brand | JATE |
| Model | TBC2800 |
| Origin | China |
| Deliver Time | 3~15 days |
| Mains frequency | 50 Hz...60 Hz ±6 % |
Application

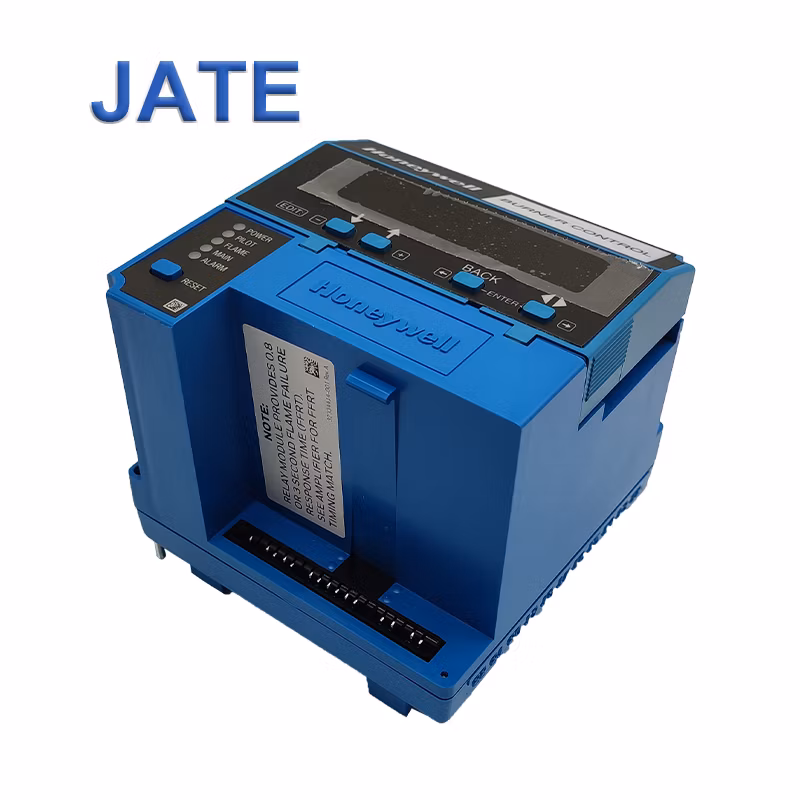

The JATE TBC2800 Relay Modules are microprocessor-based integrated burner controls for automatically fired gas, oil, or combination fuel single burner applications. The RM7800L/40G,L and EC7840L Relay Modules are used for UL Modulating and FM/IRI Modulating burner applications. The RM7800L/40G,L, EC7840L system consists of a Relay Module. Keyboard Display Modules (standard with RM7800), Dust Cover (standard with RM7840/EC7840L), Subbase, Amplifier, and Purge Card. Options include DATA CONTROLBUS MODULE™, Remote Display Mounting, First-Out Expanded Annunciator and Modbus™ communications capable.
The JATE TBC2800 Relay Modules are microprocessor-based integrated burner controls for automatically fired gas, oil, or combination fuel single burner applications. The RM7800L/40G,L and EC7840L Relay Modules are used for UL Modulating and FM/IRI Modulating burner applications. The RM7800L/40G,L, EC7840L system consists of a Relay Module. Keyboard Display Modules (standard with RM7800), Dust Cover (standard with RM7840/EC7840L), Subbase, Amplifier, and Purge Card. Options include DATA CONTROLBUS MODULE™, Remote Display Mounting, First-Out Expanded Annunciator and Modbus™ communications capable.
Electrical Ratings, see Table 3: Voltage and Frequency: RM78xx-120 Vac (+10/-15%), 50 or 60 Hz (±10%). EC78xx-220-240 Vac (+10/-15%), 50 or 60 Hz (±10%). Power Dissipation: RM7800/RM7840/EC7840L: 10W maximum in the Run mode.
Maximum Total Connected Load: 2000 VA. Fusing: 15A maximum, Type SC or equivalent Fast Blow. Environmental Ratings: Ambient Temperature: Operating: -40°F to +140°F (-40°C to +60°C). Storage: -40°F to +150°F (-40°C to +66°C). Humidity: 85% relative humidity continuous, noncondensing. Vibration: 0.5G environment. SIL 3 Capable: RM7800/RM7840E, G, L, M are now SIL 3 Capable in a properly desgined Safety Instrumented system. See form number 65-0312 for Certificate Agreement.
Maximum Total Connected Load: 2000 VA. Fusing: 15A maximum, Type SC or equivalent Fast Blow. Environmental Ratings: Ambient Temperature: Operating: -40°F to +140°F (-40°C to +60°C). Storage: -40°F to +150°F (-40°C to +66°C). Humidity: 85% relative humidity continuous, noncondensing. Vibration: 0.5G environment. SIL 3 Capable: RM7800/RM7840E, G, L, M are now SIL 3 Capable in a properly desgined Safety Instrumented system. See form number 65-0312 for Certificate Agreement.
