Basic Info.
Model NO.
HK-400VET
Material
Plastic
Certification
CE, ISO13485
Power Type
Electric
Group
Adult
Transport Package
Paper Box
Specification
1220x700x1830cm
Trademark
HAWK
Origin
China
Production Capacity
5000PCS/Year
Product Description

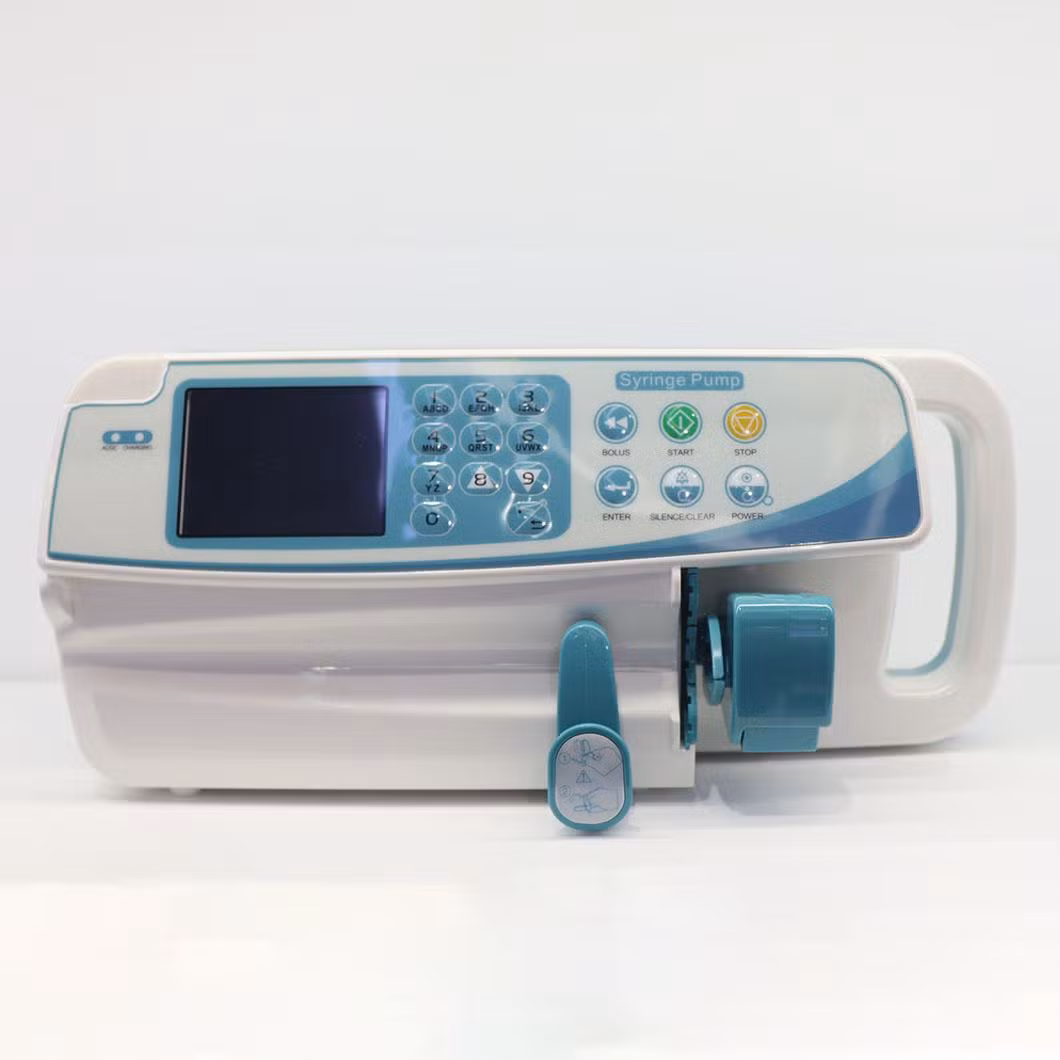

1. Products Pictures
2. Product Description
• History records
• Unique intelligent self-recognition technology of syringes
• KVO, Bolus and Anti-bolus
• Applicable for 5, 10, 20, 30, 50(60)ml syringes • Compatible for various brands of syringes
• Vanous infusion modes to meet different clinical requirements
• Various visual and audible alarms

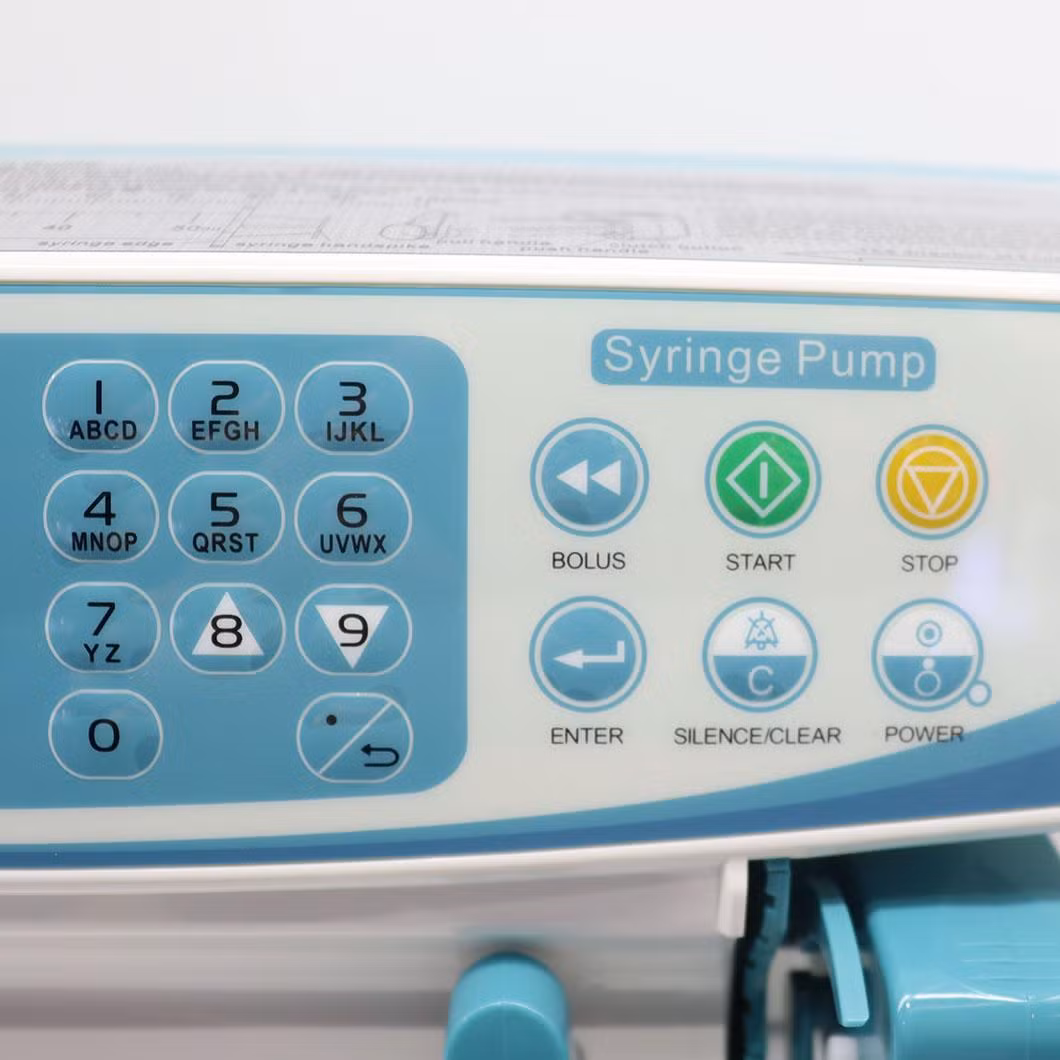

• Numeric keys design, easy to operate
• Large colorful LCD screen • Real time
display, ensure the infusion information to be recorded correctly
• 3 adjustable occlusion levels, dynamically display the pressure
• Night mode
• Doube CPU ensuring safe infusion
3. Package
4. Application
5. Certificates

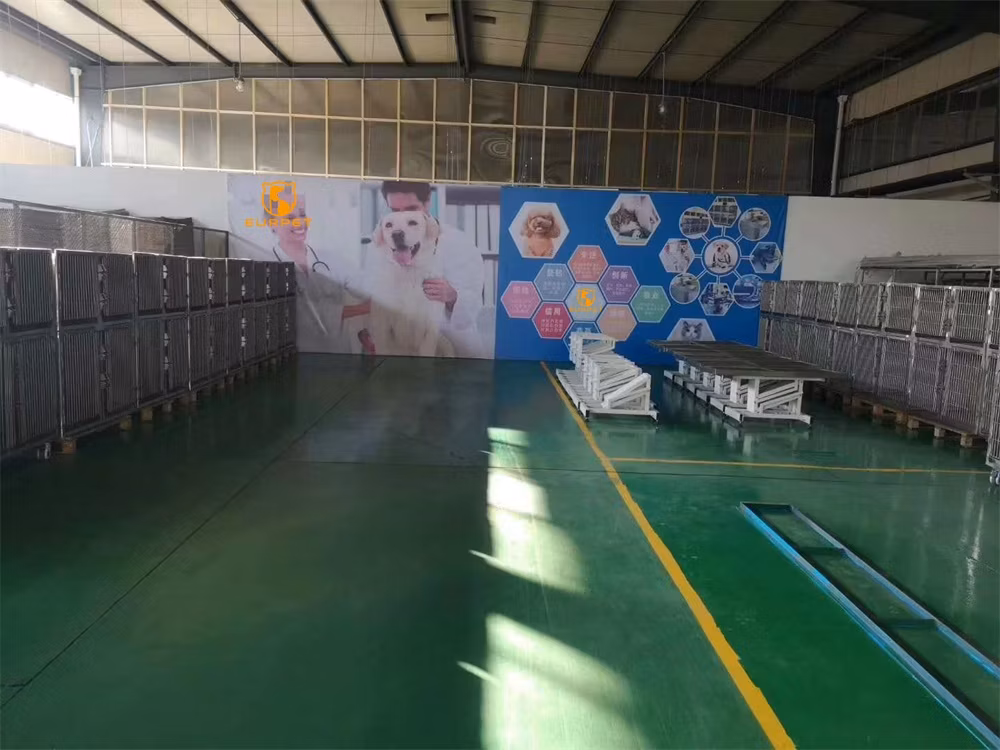

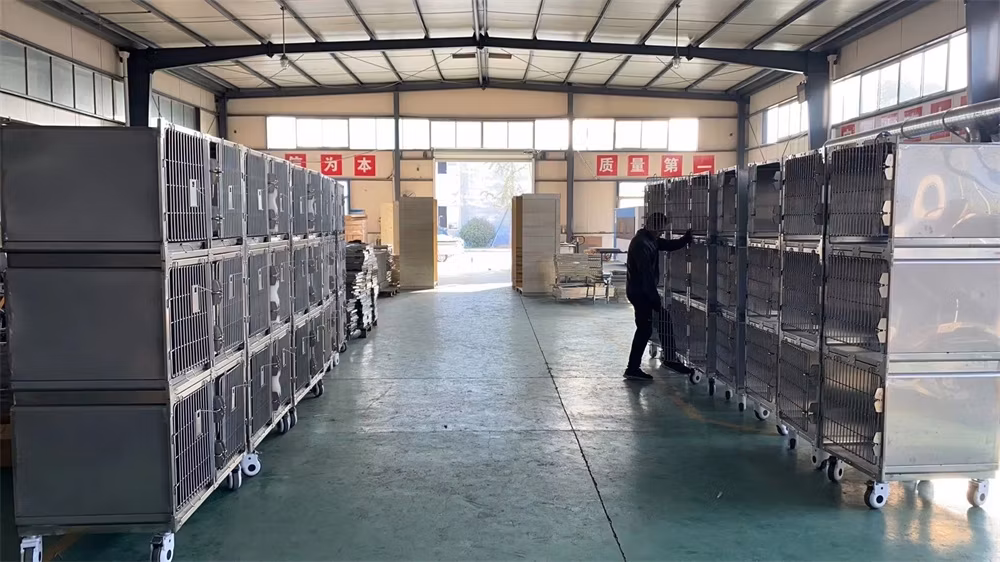

6. Factory
Weemed Medical Co.,Ltd was founded in 2010. After several years' development, our company is today one of the professional supplier of medical equipment and veterinary equipment.Our full range of products included infusion&syringe pump, Ultrasound, Anesthesia Machine,Ventilator,Patient monitors,Blood pressure monitor, Stainless steel cages and so on. We have been familiar with the high quality standards in this area from the beginning. Our company has been working with a quality management system according to ISO for years. Quality always is the first concern of us. Today, our products are shipped to all over the world, such as Europe, Middle East, Africa, South America, and Asia as well. Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
7. Exhibition

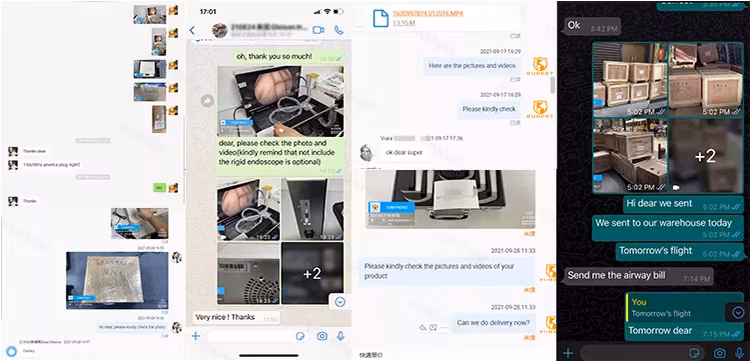

8. Customer Feedback
9. Related Products
2. Product Description
• History records
• Unique intelligent self-recognition technology of syringes
• KVO, Bolus and Anti-bolus
• Applicable for 5, 10, 20, 30, 50(60)ml syringes • Compatible for various brands of syringes
• Vanous infusion modes to meet different clinical requirements
• Various visual and audible alarms
• Numeric keys design, easy to operate
• Large colorful LCD screen • Real time
display, ensure the infusion information to be recorded correctly
• 3 adjustable occlusion levels, dynamically display the pressure
• Night mode
• Doube CPU ensuring safe infusion
| Infusion modes | Various infusion modes are optional, applicable to various departments in the hospital. |
| Applicable syringes | Various brands of syringes: 2ml (optional), 5ml,10ml,20ml,30ml,50ml/60ml |
| Injection rate | 5ml: 0.1 ml/h -150ml/h 10ml: 0.1 ml/h -300ml/h 20ml: 0.1 ml/h -600ml/h 30ml: 0.1 ml/h -900ml/h 50ml: 0.1 ml/h -1500ml/h |
| Bolus rate | 5ml: 100-150ml/h 10ml: 100-300ml/h 20ml: 100-600ml/h 30ml: 100-900ml/h 50ml: 100 -1500ml/h |
| Bolus volume limit | 1-9999.9ml/h |
| Purge rate | 5ml: 150ml 10ml: 300ml 20ml: 600ml 30ml:900ml 50ml: 1500ml |
| KVO rate | 0.1-2.0ml/h |
| Volume to be infused (VTBI) | 0.1ml~1000ml |
| Injection increment | 0.1ml |
| Accuracy | ±2% (mechanical ±1%) |
| Displayed information | Flow rate, volume limit, volume infused, syringe size, pressure value, battery capacity, unit of dosage, AC power indicator, battery charge indicator, bolus rate etc. |
| Occlusion pressure detection | 3 adjustable occlusion pressure settings: low, middle and high |
| Alarm function | Infusion completion, near completion, Empty, Occlusion, start Reminder, Low battery, Syringe disengaged, incorrect installation of syringe plunger, No AC power supply, low battery, battery exhausted, malfunction etc. |
| Battery | Rechargeable lithium polymer battery,7.4V,2100mAh Can operate up to 6 hours at 25ml/h. |
| Battery recharge time | 10h with power on, 3h with power off |
| Power consumption | 35VA |
| Classification | Class I, type CF |
| Waterproof Level | IP24 |
| weight | 1.7 KG |
| Operating conditions | Temperature:5ºC~40ºC,relative humidity:10~95%,Atmosphere pressure:86~106kPa |
| Transport conditions | Temperature-20ºC~+60ºC,relative humidity:10~95%,Atmosphere pressure:50~106kPa |
| Storage conditions | Temperature-20ºC~+45ºC,relative humidity:10~95%,Atmosphere pressure:50~106kPa |
3. Package
4. Application
5. Certificates
6. Factory
Weemed Medical Co.,Ltd was founded in 2010. After several years' development, our company is today one of the professional supplier of medical equipment and veterinary equipment.Our full range of products included infusion&syringe pump, Ultrasound, Anesthesia Machine,Ventilator,Patient monitors,Blood pressure monitor, Stainless steel cages and so on. We have been familiar with the high quality standards in this area from the beginning. Our company has been working with a quality management system according to ISO for years. Quality always is the first concern of us. Today, our products are shipped to all over the world, such as Europe, Middle East, Africa, South America, and Asia as well. Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
7. Exhibition
8. Customer Feedback
9. Related Products
