Basic Info.
Frequency
101,4 kHz ± 2,5 kHz
Temperature Range During Storage
-40 to +75 °c (-40 to 167 °f)
Temperature Range During Operation
-15 to +60 °c (5 to 140 °f)
Diameter
Ca. 110 mm
Width, Brackets Included
125mm
Weight
Ca. 0,4 Kg
Flammability According to UL94
Self-Extinguishing, V-0
Type
MB22 Electronic Ball Marker Locator Ball
Transport Package
Cartons, Crates or Customised Packaging
Specification
A*B*C(m) 1*0.3*0.2
Trademark
Fibconet
Origin
China
HS Code
3919109900
Production Capacity
200units/Day
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 50.00cm
Package Gross Weight
10.000kg
Product Description
IP68 Diameter 12 cm Operating Frequency 0133.3KHz or 66.35 KHz Contains Chip Buried Optical Cable Marking Ball
· Pipeline path
· Nonmetallic pipe
· Various valves
· Metering meter
· Various crossing points
· Tee · Depth change
· Pressure reducing device
· Cathodic protection
· Pressure control point
· Embedded reserved port
· Various elbows
· Pipe diameter change
· Water well · Cover
· Maintenance point
1. Can I get samples before mass production?
PRODUCT DESCRIPTION
Underground Electronic Marker have two models(ID or Non ID). It consists of a sealed shell containing a passive antenna - a low-frequency resonance circuit tuned to a certain frequency. The ID version integrates an ID chip. Depending on the resonant frequency and the color, the ball used to mark a wide range of underground facilities, such as telecommunication lines, power supply networks, cable television networks, water supply pipelines, wastewater networks, oil and gas pipelines, and so on. APPLICATIONS

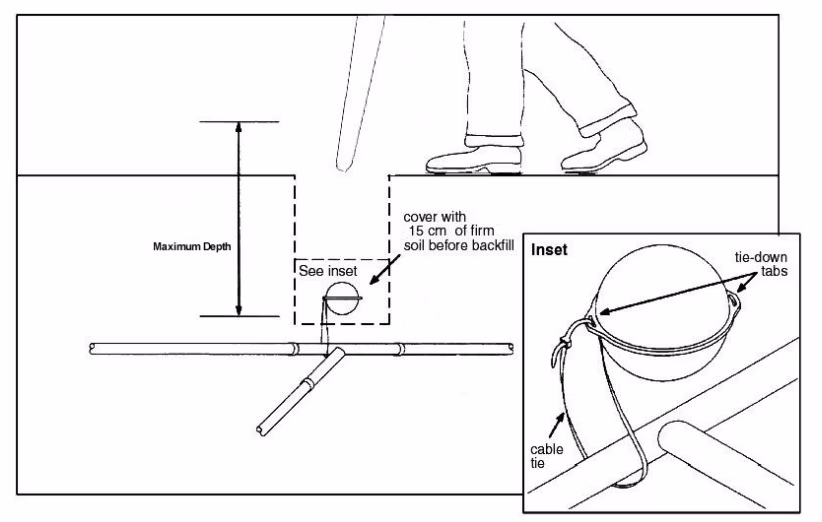

The ball can be installed at a certain interval, or at the turning of changing trend and at some event points, such as connection points, valves, well covers, T-shaped branches, etc. According to the project importance and project budget, the instralling density can vary from several meters to tens of meters, usually 10-20 meters.· Pipeline path
· Nonmetallic pipe
· Various valves
· Metering meter
· Various crossing points
· Tee · Depth change
· Pressure reducing device
· Cathodic protection
· Pressure control point
· Embedded reserved port
· Various elbows
· Pipe diameter change
· Water well · Cover
· Maintenance point
| 1,Physical Characteristics | |

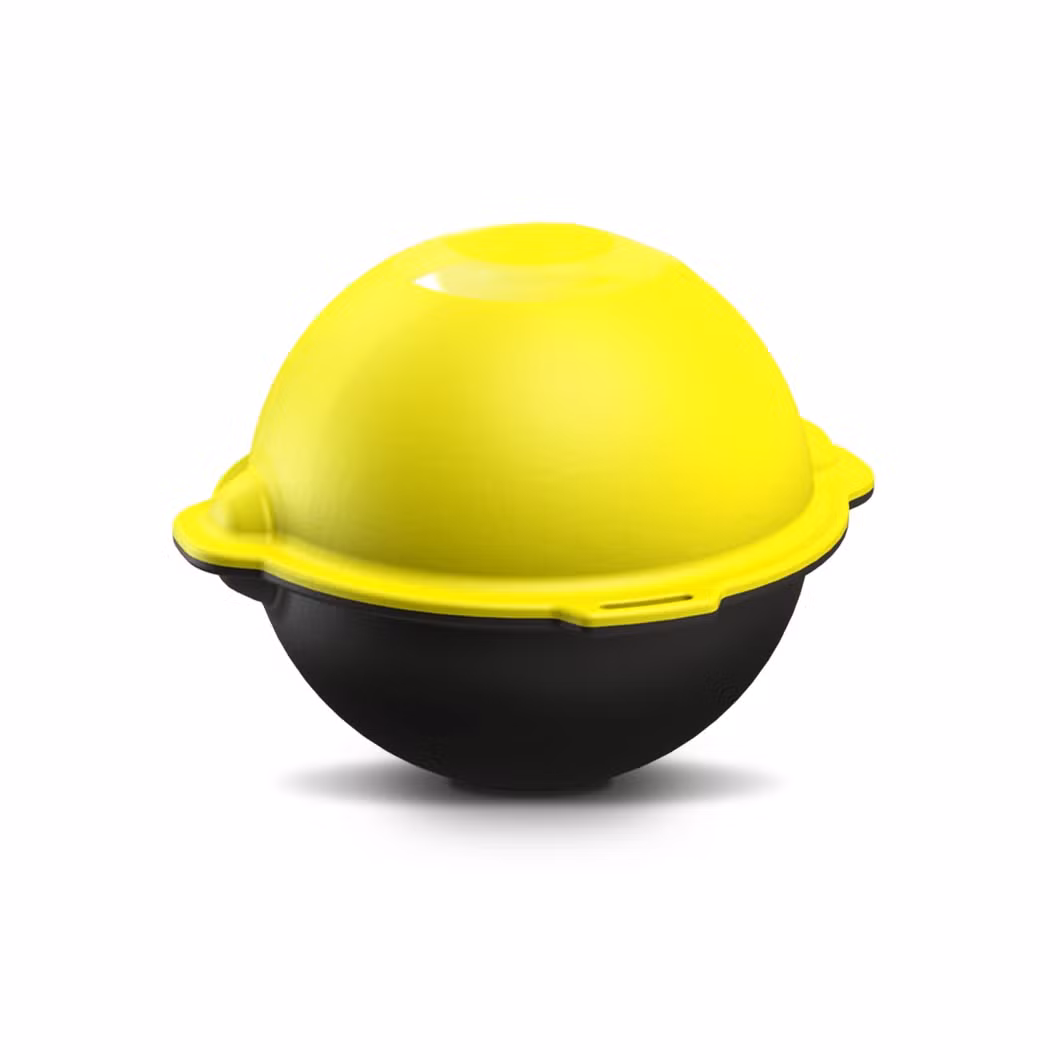

| Shape | Ball type |

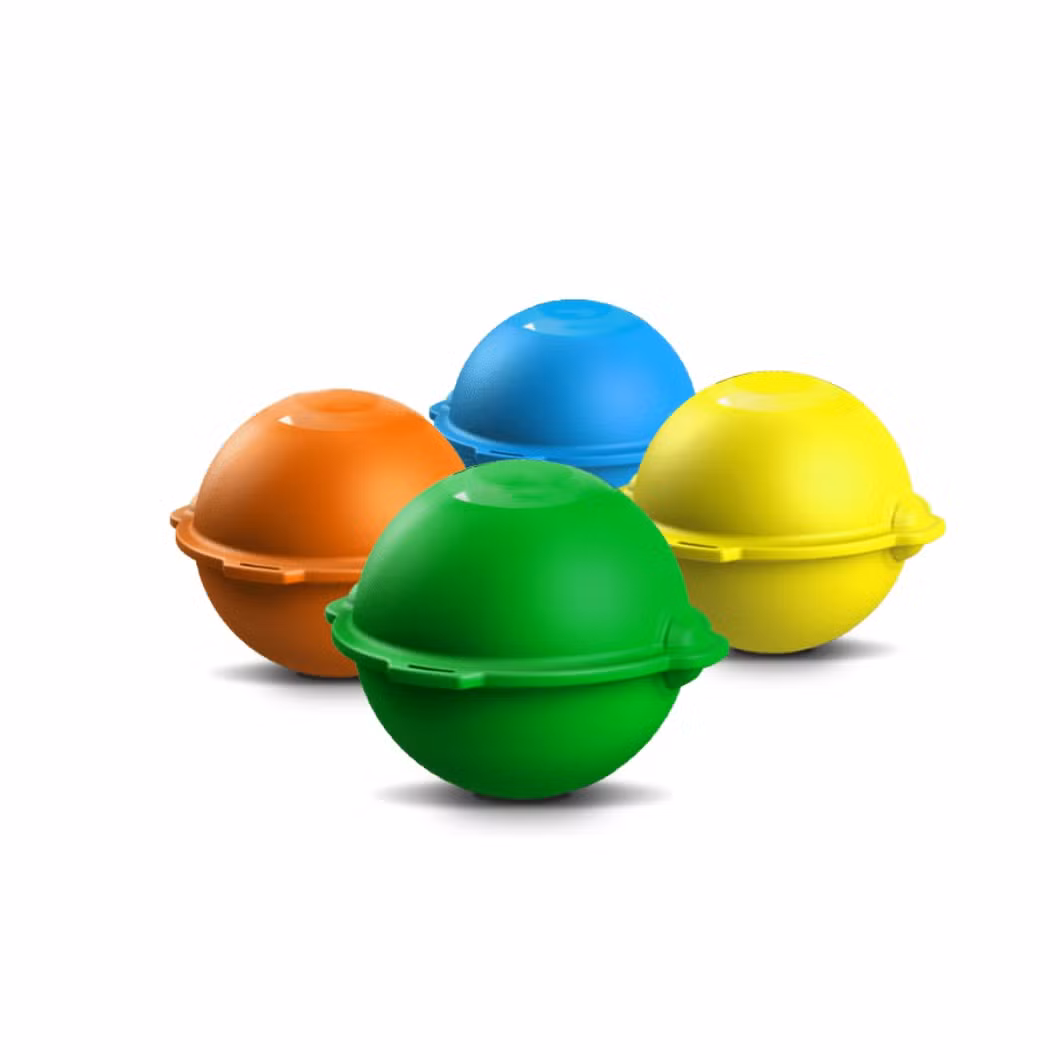

| Colour | Yellow (Other colors can be customized in bulk) |
| Shell | HDPE |
| Weight | 0.35 Kg±10% |
| Dimensions | Diameter 12 cm (excluding tie holes) |
| Case height: 2.42in (76mm) | |
| Melt index | 4.8g/10min (200 ºC / 5kg) |
| Rockwell hardness | 65 |
| Softening point | 122 ºC |
| Internal Attachments | Built-in antifreeze(Used to keep labels horizontal and upward) |
| 2,Environmental Characteristics | |
| Working temperature | - 20 ºC - 50 ºC |
| Storage temperature | -20 °C to +70 °C |
| Drop test | it can withstand the drop from 5 feet (about 1.5 meters) to the concrete floor |
| Waterproof and dustproof | IP68 |
| Compression capacity | 5kN axial pressure (uniform pressure) |
| 3,Electrical Characteristics | |
| Maximum placement depth | up to 1.5M |
| Minimum distance from the metal facility to marker | 4in (10cm) |
| Global Unique ID code(Optional) | No ID version |
| ID version:10 digits (Memory capacity: 64 bits) | |

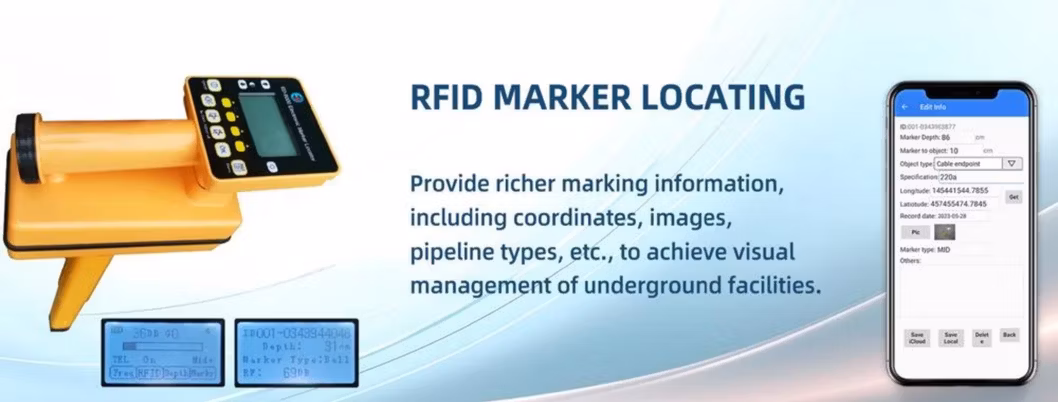

| Compatible locator | No ID version: ED8000 or 3M Dynatel EMS Locator |
| ID version: ED8000 | |
| Operating frequency(optional) | Power 169.8KHz |
| Water 145.7 KHz | |
| Sanitary 121.6 KHz | |
| Telecom 101.4 KHz | |
| Gas 83 KHz or 87Khz | |
| Cable TV 77 KHz | |
| General 133.3KHz or 66.35 KHz | |
| 4,Packing Specification | |
| Packing size | A*B*C(m) 1*0.3*0.2 |
| packing quantity: | 30PCS |
| Packing Style | Carton |
| GROSS(kg) | 13.5 |
| NET(kg) | 12.98 |
