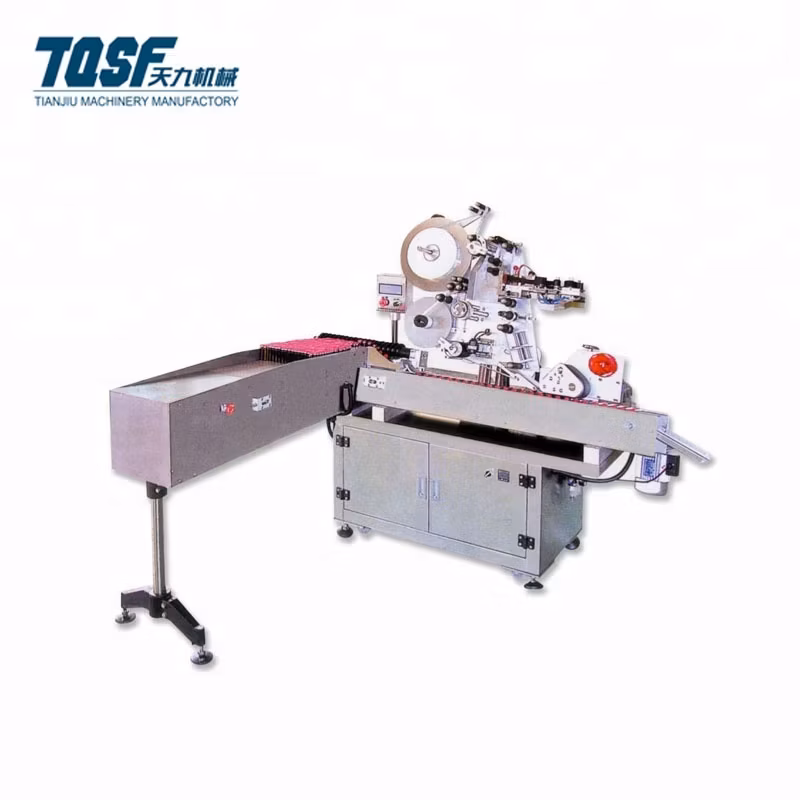

Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry

Customization: Available
Certification: CE
Condition: New

Products Details

Basic Info.

Warranty
1year
Weight
200kg
Automatic Grade
Automatic
Power
220V
Roll Diameter
76mm
Label Height
10mm-150mm
Labeling Speed
200-400b/M
Power Consumption
980W
Packaging Type
Bottles
Dimension(L*W*H)
1950*1100*1300mm
Driven Type
Electric
Type
Labeling Machine
Transport Package
Wooden Packing
Trademark
TQSF
Origin
China

Product Description

Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry

Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry

Technical Parameter

Model RXL-400

Labeling speed

200-400b/m

(Adjustable speed, depending on bottle size and label length)



Labeling accuracy



+1mm(depends on products Characteristics, hardness and trueness of the circle)



Bottle diameter



25-120mm



Object range

 Height: 20mm ~ ~ 300mm (Can be customized according to customer requirements)


Label specifications



Height:10mm~~150mm  Length: 15~~300mm

(Special specifications can be customized)



Roll diameter

 Φ76mm Outer roll diameter: Φ300(max)
 Power supply  AC220V 50/60HZ 980W


Weight

 200KG


Package Size

 1950*1100*1300mm

Introduction:

This device is suitable for circumferential or semi-circular labeling of various unsteady cylindrical objects. Widely used in cosmetics, food, medicine, daily chemical, electronics, toys, hardware, plastics and other industries, can achieve full circle / circle mark. The use of horizontal delivery and horizontal labeling increases stability and improves labeling efficiency. Optional ribbon coder and inkjet printer, labeling at the same time to achieve print production lot number, production date and other information, to achieve labeling - coding integration, reduce packaging processes and increase production efficiency. Applicable stickers, stickers, electronic surveillance codes, bar codes, two-dimensional code labels, transparent labels, etc. High equipment stability, labeling effect, no bubbles, no wrinkles, high labeling accuracy.

Equipment advantages:

(1) Simple adjustment, configuration before and after, left and right and up and down direction, plane inclination angle, vertical plane inclination angle adjustment seat, no dead angle of different bottle shape switching, in line with GMP production requirements;

(2) Automatically divide the bottle, effectively eliminate the error caused by the bottle itself is not smooth, and improve stability;

(3) With automatic stop function, production count function, power saving function (the device automatically goes to power saving standby state when there is no production within the set time), production number setting prompt function, parameter setting protection function (parameter setting sub-rights management), Convenient production management;

(4) Powerful, color touch screen control, Chinese and English optional operation interface, convenient and intuitive, powerful data memory function, can store 50 sets of labeling parameters, with production count function, power saving function, production number setting prompt function, parameter setting protection function , Convenient for production management, one-button switching of different product labeling, no need for repeated debugging, simple and quick, and with perfect fault indication and help function;

(5) High stability, the use of imported brands for measuring and testing sensors, high detection sensitivity, stable performance, and durability; stable and durable bases and various parts, all adopting standardized modular design with complete interchangeability, 24 Hours of operation to ensure safety and stability.

(6)Safety and health, chassis, stainless steel SUS304 material and T6 aluminum alloy, never rust, in line with GMP excellent manufacturing standards;

Samples:

Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry

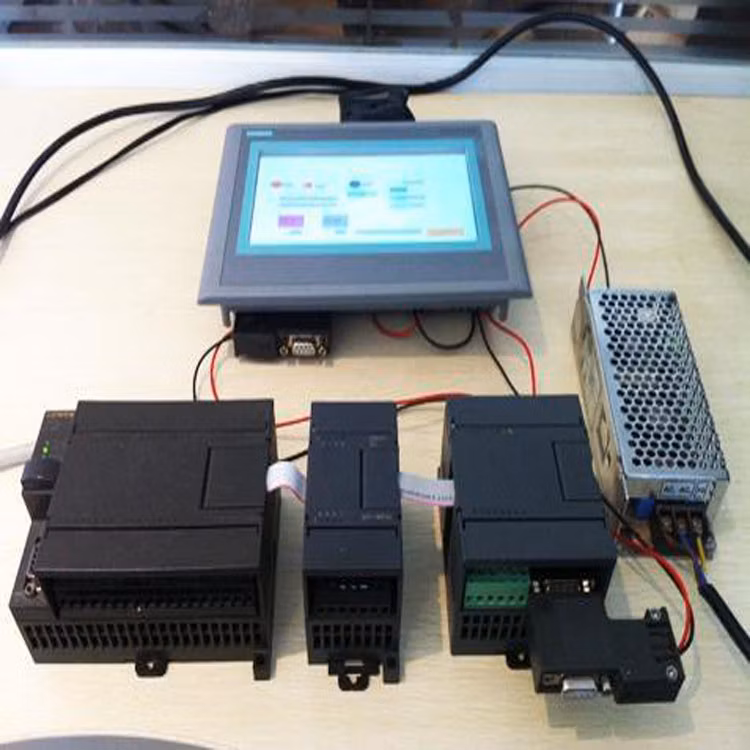

PLC & Touch screen:(easy to operate)

Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry

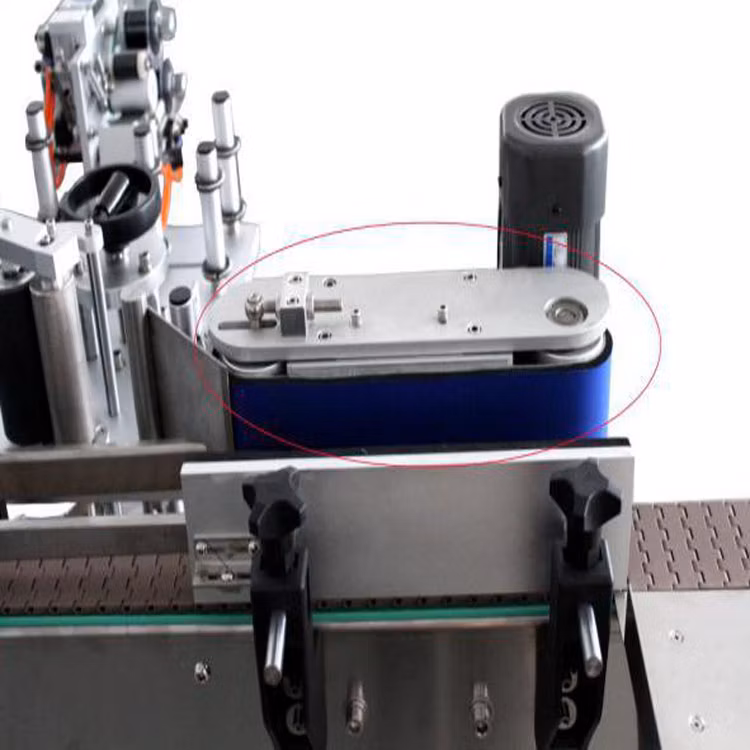

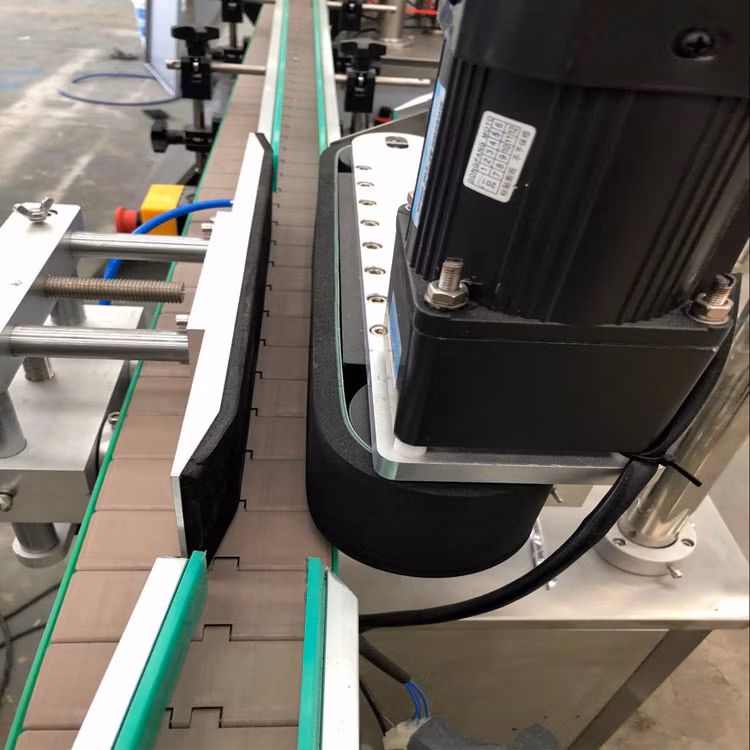

Conveyor:

Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry

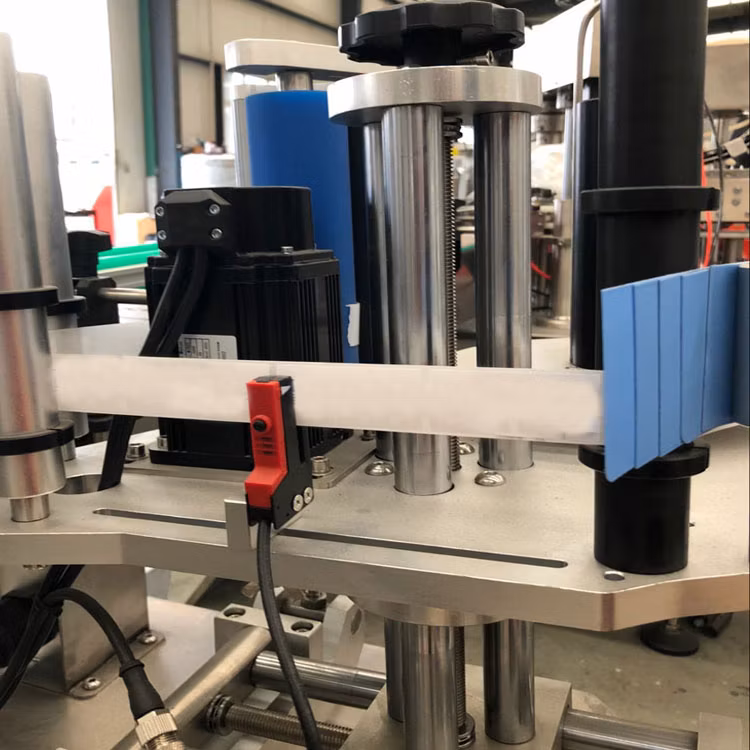

Sensor:

Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry

Power mechanism



Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry Rxl-400 High Speed Automatic Labeling Machine for Pharmaceutical Industry
