Basic Info.
Model NO.
3D2F
Drive Mode
Mechanically Driven Pump
Pump Shaft Position
Vertical
Type
Radial
Power
Electric
Straight Shaft Swashplate Piston Type
Self-Absorbing
Radial Plunger Pump Type
Valve with Flow
Cleaning Process
Cold Water Cleaning
Weight (Kg)
1100 Kg
Machine Type
High Pressure Cleaner
Use
Descaling / Stripping
Product Name
High Pressure Pump
Cleaning Type
High Pressure Cleaner
Dimension(L*W*H)
880X630X630mm
Material
Metal / Coil
Feature
Plunger Piston Pump
Max. Pressure
280MPa
Warranty of Core Components
1 Year
Marketing Type
New Product 2023
Key Selling Points
Supply OEM and ODM for Client
Core Components
Pressure Vessel, Motor, Pump, Engine, Gearbox
Fuel
Diesel
Transport Package
Wooden Case
Specification
1800KGS
Trademark
JUJINGPAI
Origin
Tianjin, China
HS Code
8413503190
Production Capacity
100 Set/Sets Per Month
Product Description

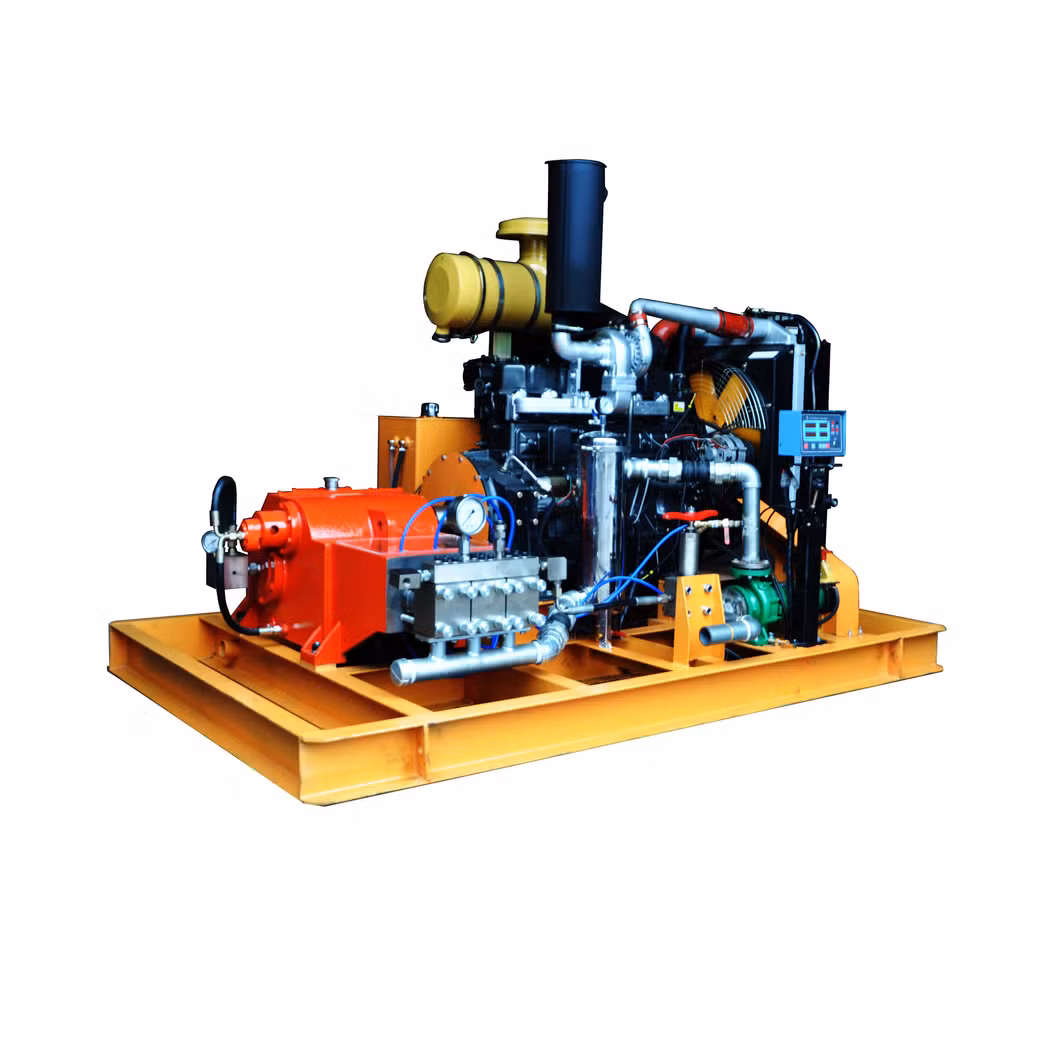

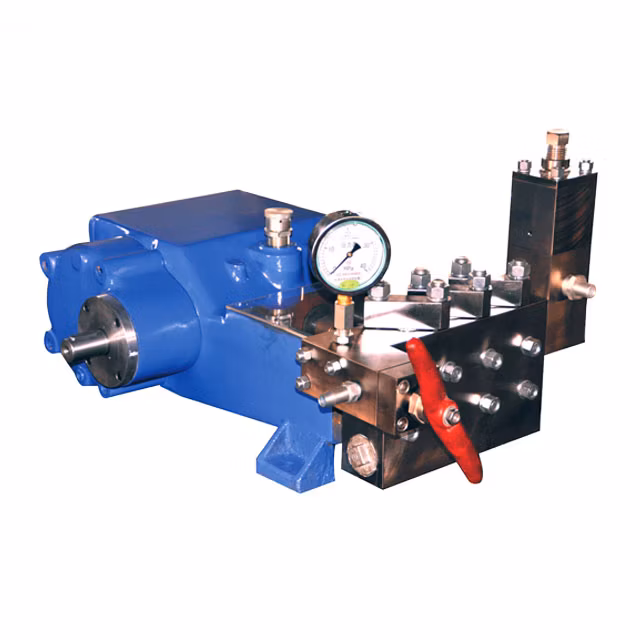

3D2F-S pump is our company's latest patented product with a maximum working pressure of 150MPa. The maximum matching power of the power
end is 110kW.The liquid end adopts a split structure, a new plunger cooling circulation device, and a modular liquid inlet and outlet valve group,
which is easy to use and maintain. It can be used for power plant heat exchanger, condenser cleaning, boiler descaling and cleaning, and highway
marking line cleaning. Can transport clean water, emulsion and other high-pressure liquids with similar chemical properties.
| RPM. r/min | 1480 | Plunger Stroke mm | 100 | ||
| Gear reduction ratio i | 4.45 | Pump NO. r/min | 332 | ||
| Power kW | 75 | 90 | 110 | Plunger Diameter mm | |
| Flow | Pressure MPa | ||||
| m³/h | L/min | ||||
| 1.5 | 25 | 150 | 18 | ||
| 1.8 | 30 | 130 | 150 | 20 | |
| 2.2 | 37 | 100 | 130 | 150 | 22 |
| 2.7 | 45 | 85 | 100 | 125 | 24 |
| 2.9 | 48 | 80 | 90 | 25 | |
| weight: pump 542kg base140kg | |||||
Tianjin Harvest High Pressure Pump Co., Ltd. is a manufacturer that has long been engaged in the research, development, production and sales of
high-pressure plunger pumps. The company has always been committed to product technological innovation, and effectively ensures product
quality with a sound quality management system, sound management model and sound product testing and systems. Our company has strong technical force and has passed ISO9001quality management system certification, hightech enterprise certification, coal safety certification, green product title in the template scaffolding industry member unit of China Cleaning Association, member unit of National Pump Standardization Technical
Committee and China Transportation Association ,The title of Traffic Engineering Facilities Member Unit, and through the continuous efforts of our technical backbone, we have also received dozens of Practical patent certificates.The company's main products: high-pressure pumps, high-pressure cleaning machines, etc.
Products are widely used in road traffic sign line removal and cleaning, bridge cement demolition, building aluminum template surface cleaning, wall roughening wall demolition, water conservancy photovoltaic pumping, coal seam water injection coal seam fracturing, metallurgical phosphorus removal, ship cleaning and rust removal, removal of attached marine organisms, municipal sewer cleaning and dredging, automobile factory grille trolley paint removal, oil field water injection and oil layer fracturing, chemical plant heat exchangers, condensers, air cooling islands, evaporator (tower) cleaning, pipeline pressure testing and many other fields.
Harvest company has always adhered to the concept of right for customers first and taking ourselves as wrong; adhered to the development concept of innovative spirit and entrepreneurial spirit; and realized the benefit concept of winwin together. At the same time, the company adheres to the principle that "quality is the foundation of an enterprise, integrity is the foundation of an enterprise's development, and customers are the foundation of an enterprise's survival." It relies on science and technology for development and aims at customer satisfaction, and continues to provide high-quality products & satisfactory service to new and old customers.
Q: How do I pay for my purchase order? TIT L/C at sight, Escrow, Paypal.
Q: How can I get sample and how long will it takes?
Sample fee will be doubled, but we will refund the extra money after you place an order to us it usually takes15-25 days to produce a sample.
Q: What's about MOQ?
Our MOQ is one set
Q: What's the delivery time in your factory?
It will take about 45 days to finish an order. But the exact time is according to actual situation.
Q: Can I have my own customized product?
Yes, We have OEM service, your customized requirements for color, logo, design, package, carton mark, etc. are very welcome.
Q: Do you have quality control?
Yes we attach great importance to quality control.
Q: How about the warranty?
One year warranty .If quality problem occurs , please feel free to contact us.
Q: What is the working principle of your pump?
Our high-pressure plunger pump adopt the high pressure water jet flow to remove dirt, grease.
Q: What is your driven system?
Electric, diesel engine.
Q: What kind of pump do you have in your company?
Q: How can I get sample and how long will it takes?
Sample fee will be doubled, but we will refund the extra money after you place an order to us it usually takes15-25 days to produce a sample.
Q: What's about MOQ?
Our MOQ is one set
Q: What's the delivery time in your factory?
It will take about 45 days to finish an order. But the exact time is according to actual situation.
Q: Can I have my own customized product?
Yes, We have OEM service, your customized requirements for color, logo, design, package, carton mark, etc. are very welcome.
Q: Do you have quality control?
Yes we attach great importance to quality control.
Q: How about the warranty?
One year warranty .If quality problem occurs , please feel free to contact us.
Q: What is the working principle of your pump?
Our high-pressure plunger pump adopt the high pressure water jet flow to remove dirt, grease.
Q: What is your driven system?
Electric, diesel engine.
Q: What kind of pump do you have in your company?
As long as you provide us with your role object, the flow and pressure. We can recommend to you.
